PDF

Idioma Inglês

Páginas 672

CX330 Tier 3
Crawler Excavators
Table of Contents
N°1GENERAL INFORMATION
Safety, general information and standard torque data 10017-27691NA
General specifications and special torque setting10029-94170NA
Numerical value conversion table 10039-02
ENGINE
Radiator and engine, removal and installation 20019-94830NA
Engine specifications  *Disassembly and assembly of the engine3FUEL SYSTEM
Fuel tank 30019-43471NA
Fuel engine system
*4ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting40019-94180NA
Inspection and maintenance of batteries and connecting a booster battery40029-43460NA
Main and engine electronic control boxes 40039-43451NA5
UNDERCARRIAGERemoval and installation of tracks 50019-42910NA
Rollers 50039-42921NA
Sprocket 50049-36890NA
Idler wheel and tension shock absorber 50059-94790NA
6DRIVE TRAIN
Drive motor and final drive transmission removal and installation 60019-43141NA
Swing reduction gear, removal and installation60039-43210NA
Swing reduction gear, disassembly and assembly60049-43221NA
Travel reduction gear disassembly and assembly  60059-43151NA
7UNDERCARRIAGE HYDRAULICS
8UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of thevacuum pump and bleeding the components 80009-43501NA
Specifications, troubleshooting, checks and hydraulic pressure settings80019-94190NA
Hydraulic reservoir removal and installation 80029-43230NA
Main and pilot pumps, removal and installation 80039-94840NAMain hydraulic control valve, removal and installation 80049-43261NA
Attachment cylinders, removal and installation 80059-43251NA
Hydraulic swivel, removal and installation 80069-43390NAPilot blocs, removal and installation 80079-43400NASwing motor, removal and installation80089-43200NA
Main hydraulic pump, disassembly and assembly 80109-94850NA
Main hydraulic control valve, disassembly and assembly 80119-43551NA
Attachment cylinders, disassembly and assembly 80129-94760NA
Hand control levers, disassembly and assembly 80139-94630NA
Foot control levers, disassembly and assembly 80147-28301NA
Six-solenoid valves, disassembly and assembly80159-43361NA
Caution valve, disassembly and assembly80169-94770NA
Hydraulic swivel, disassembly and assembly80189-43190NA
Swing motor, disassembly and assembly 80199-43441NA
Hydraulic functions80209-94200NA
Travel hydraulic motor, disassembly and assembly80219-43161NA
Hydraulic component functions 80309-94210NA
N°9 UPPERSTRUCTURE
Upperstructure, turntable and counterweight 90029-43411NA
Boom, dipper and bucket 90039-43421NA
Seat and seat belt 90049-40960NA
Cab and cab equipment 90059-94800NA
Air conditioning troubleshooting 90067-xxxxxFR
Air conditioning unit disassembly and assembly90079-94640NA
Air conditioning servicing 90087-xxxxxFR
Air conditioning components 90097-xxxxxFR

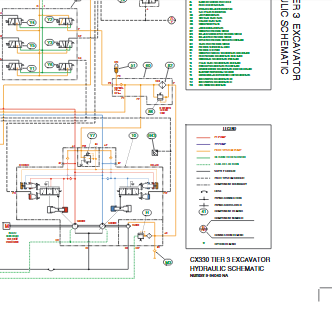

Large format hydraulic schematic  Pocket9-94040

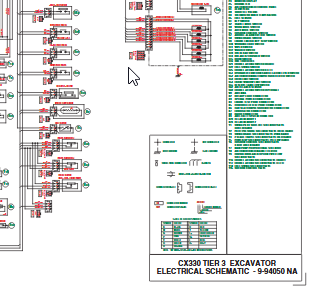

Large format  electrical schematic  Pocket9-94050
